Port Scanning Explained: From TCP Handshake to Security Assessment in Practice

Port scanning is fundamental to network security assessment. This article covers TCP handshake mechanics, compares scanning techniques, and teaches result interpretation and defense strategies.

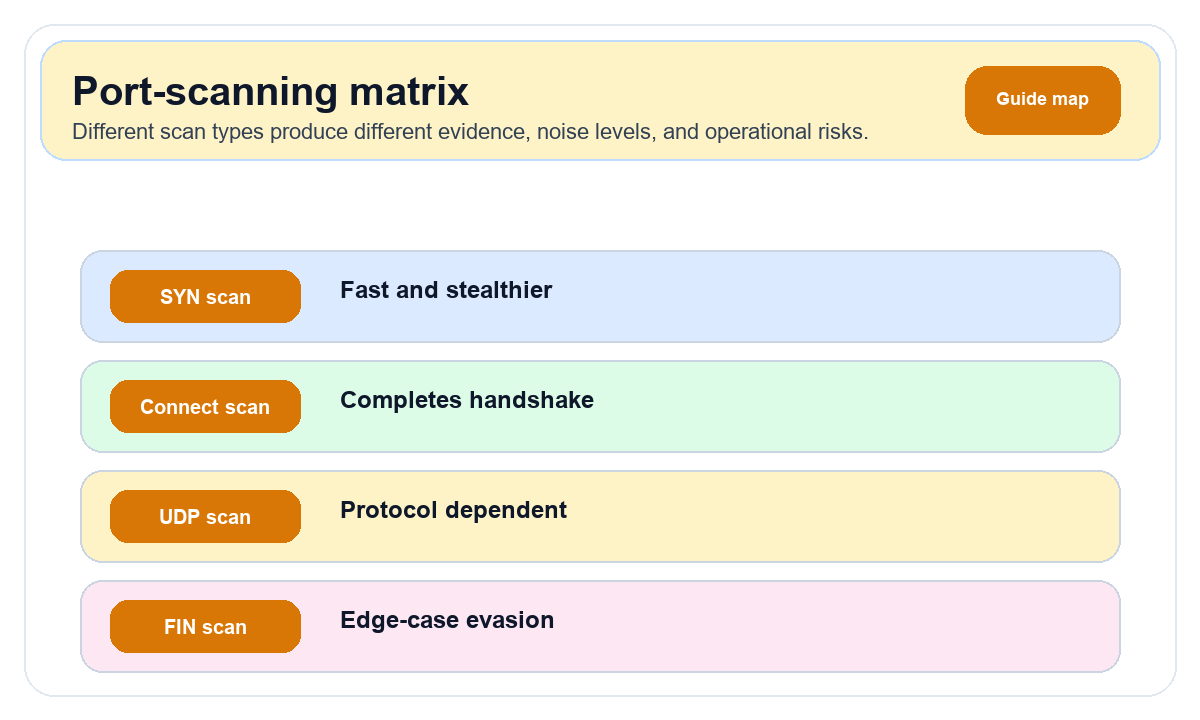

Illustration: Port-scanning types and risk-assessment diagram

Port Basics: Why 65,535?

Range	Category	Examples
0–1023	Well-Known	22 (SSH), 80 (HTTP), 443 (HTTPS)
1024–49151	Registered	3306 (MySQL), 5432 (PostgreSQL)
49152–65535	Ephemeral	OS-assigned for client connections

TCP Handshake & Scanning

SYN

→

SYN-ACK

→

ACK

→

Connected

Type	Sends	Open	Closed	Notes
TCP Connect	Full handshake	SYN-ACK	RST	Reliable; logged
SYN	SYN only	SYN-ACK	RST	Fast, stealthy; root needed
FIN	FIN	No response	RST	Bypasses some firewalls
UDP	UDP datagram	App response	ICMP Unreachable	Slow; finds DNS/SNMP

💡 Tip: SYN scan (nmap -sS) is the most commonly used scan in practice. It only completes the first half of the handshake—fast and leaves no application-layer logs. But it requires root/admin privileges since it constructs raw packets.

Port States

State	Meaning	Cause
open	Listening	Service running
closed	Reachable, no service	Service stopped
filtered	Cannot determine	Firewall DROP

Essential Commands

# Quick scan of common ports (SYN scan, needs root)
sudo nmap -sS -T4 --top-ports 1000 target_ip

# Full port scan (takes longer)
sudo nmap -sS -p- target_ip

# Service version detection
sudo nmap -sV -p 22,80,443,3306 target_ip

# OS fingerprinting
sudo nmap -O target_ip

# UDP scan (common UDP services)
sudo nmap -sU --top-ports 100 target_ip

# Comprehensive scan (version + scripts + OS detection)
sudo nmap -A -T4 target_ip

High-Risk Ports

Port	Service	Risk	Fix
22	SSH	Brute force	Key auth + fail2ban
3389	RDP	Brute force + exploits	VPN only
3306	MySQL	Unauthorized access	Bind 127.0.0.1
6379	Redis	No auth → RCE	Set password + localhost
9200	Elasticsearch	Data exposure	Don't expose + auth
27017	MongoDB	Unauthorized access	Enable auth + IP restrict

⚠️ Warning: Scanning servers you don't own may violate applicable laws. Always scan only targets you are authorized to test.

🔒 Server Port Security Checklist:

Least exposure: Only open required ports
Never expose databases publicly
Management via VPN
Monthly self-audits with nmap
Use ipinfo.im Port Scanner for quick checks
